HITACHI ATAの技術情報

Deskstar 3 Jumper settings

Models: DAQA-32160, 32700, 33240

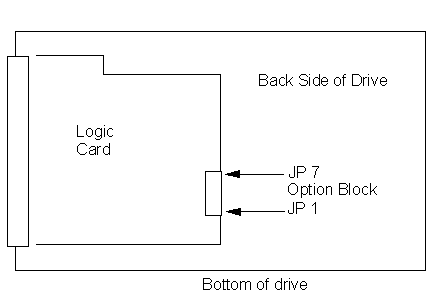

Option block

Jumper settings

Jumpers may be fitted to select the following options:
	Pin #
Master active	1-2 (shipping default)
Slave active	3-4
Cable select	5-6
Slave present*	7-8
Write cache	9-10 (disabled with jumper)
Reserved	11-12
Reserved	13-14
Note: *Jumper these pins if the slave drive is not recognized by this master.
Write cache jumpers
Write cache jumpers is checked during the initial POR check. Write cache is disabled when a jumper is fitted and in this case a "Set Features" command to switch write cache "on" or "off" will be aborted by the drive.
Shipping default settings
Master is set to on (jumper on pins 1-2) No other jumpers are fitted. Note: The jumper positions JP1,JP2,JP3, must not be selected concurrently.

http://www.hgst.com/hdd/support/table.htm#Deskstar
